blending speed and power
planar magnetic iems
Impactful, unique sonic performance
A planar magnetic IEM uses a thin diaphragm with a serpentine voice coil distributed across its entire surface, driven by magnetic fields on both sides. Unlike dynamic drivers that push from the center, planar drivers move the full diaphragm simultaneously, producing lower distortion, faster transient response, and wide, spatially accurate soundstage.
Why Planar Drivers Were Considered Unsuitable for IEMs?
Planar magnetic technology has been used in full-size over-ear headphones for decades. Brands like Audeze and HiFiMAN established planar as the reference standard for low-distortion, high-resolution listening in the over-ear format. However, size, sensitivity, and cost limitations historically made planar drivers impractical for in-ear applications. The large diaphragm surface area required for effective planar performance did not translate well to the compact dimensions of an IEM housing.
Advances in planar driver miniaturization changed this calculation. Smaller, more efficient planar drivers became viable at IEM scale without sacrificing the core acoustic advantages that made the technology valuable. Campfire Audio's Supermoon, introduced at $1,099 and later reduced to $899, was among the first commercially successful planar IEMs. It established the format as viable at the portable level and demonstrated that planar performance could scale to in-ear form factors without compromise.
Campfire Audio now offers three active planar IEM models spanning $899 to $2,199, plus a custom-fit variant. This sustained commitment to planar IEM engineering reflects accumulated expertise in miniaturized planar driver implementation, acoustic tuning, and the specific challenges of integrating planar technology into portable listening systems.
How Planar Drivers Work?
Planar magnetic drivers operate on a fundamentally different principle than dynamic or balanced armature drivers. Understanding these mechanical differences explains why planar IEMs sound distinct.
planar advantage

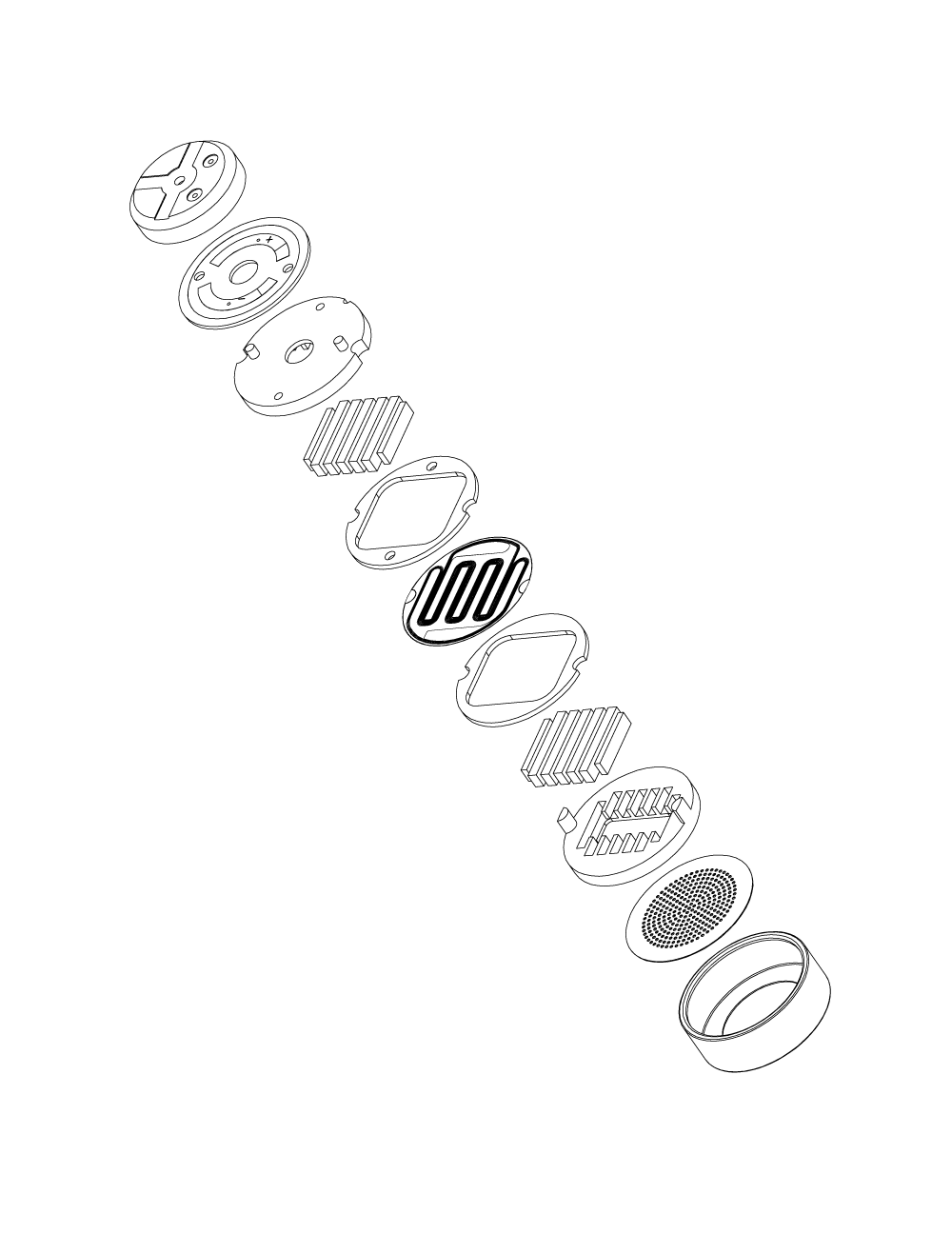

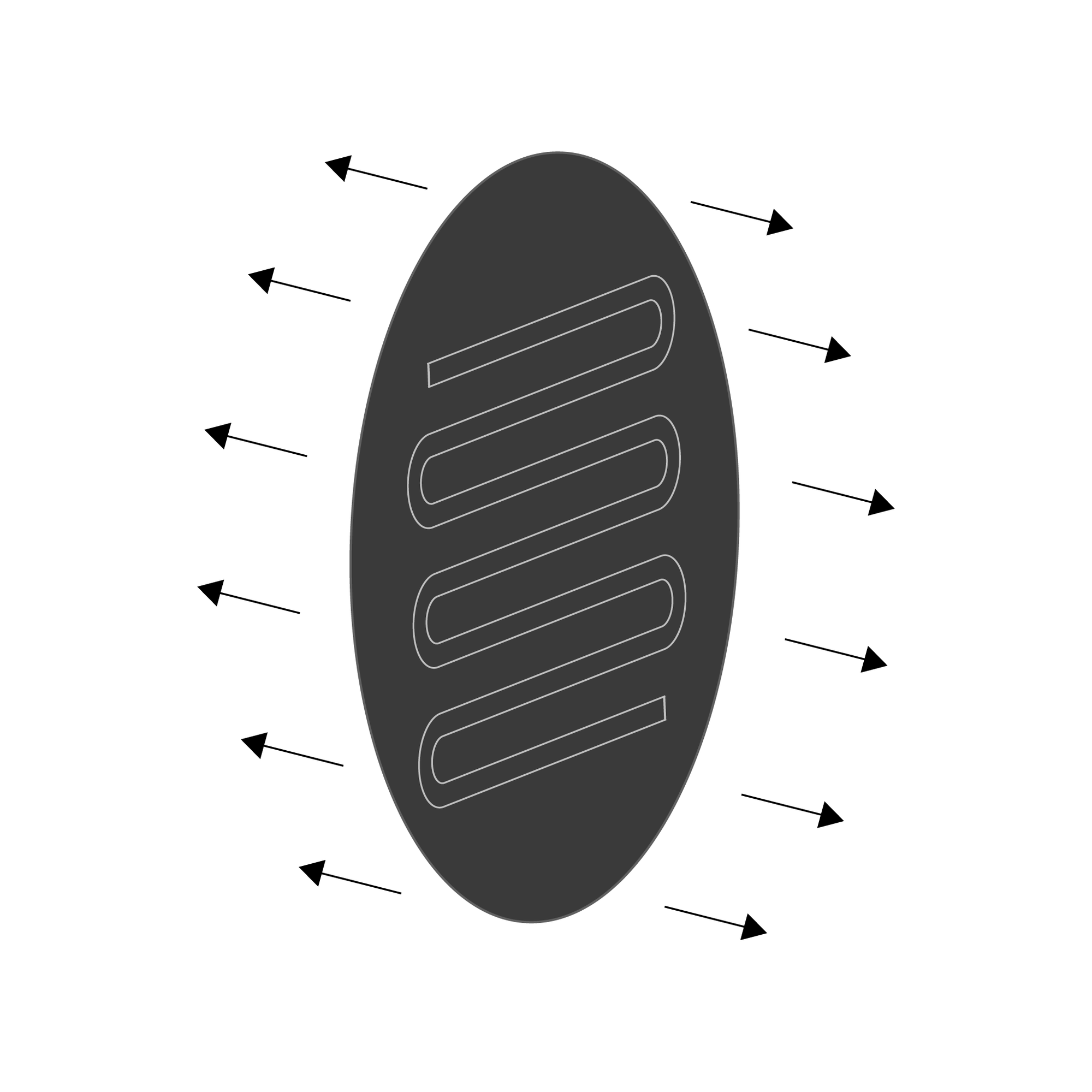

The serpentine voice coil in a planar driver is distributed evenly across the diaphragm surface, rather than concentrated at the center as in a dynamic driver. When current flows through the voice coil, the entire diaphragm moves simultaneously rather than flexing from a central point outward. This produces more controlled, less distorted diaphragm motion.
The result is accuracy and the absence of bass smearing that large dynamic drivers can produce. When a bass note starts and stops, the planar diaphragm responds as a single unit. There is no flexing or bending of the diaphragm surface that would cause different parts of the diaphragm to arrive at the listener's ear at slightly different times. This mechanical precision translates to tighter, more defined low-frequency reproduction.

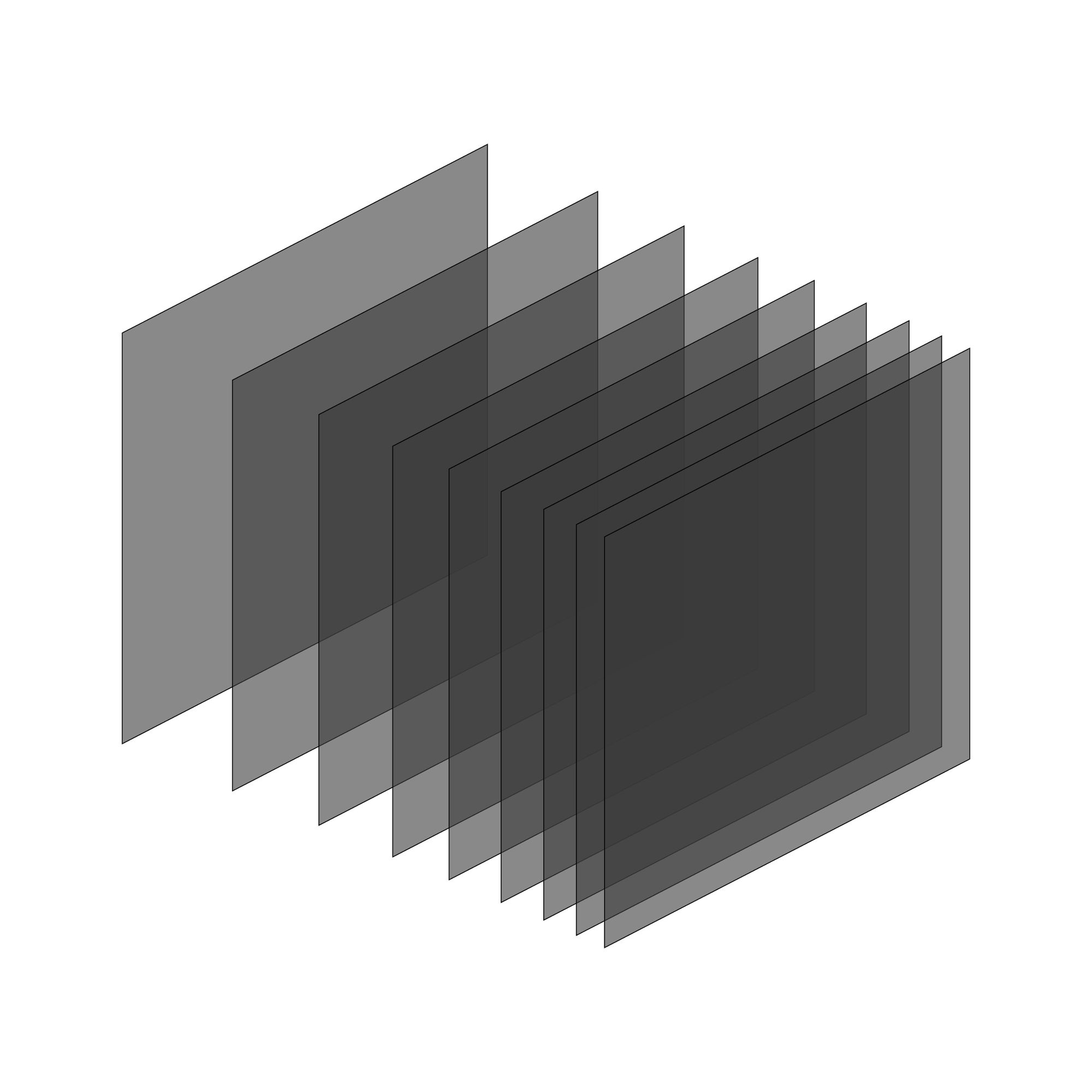

Planar drivers propagate a plane wavefront, as opposed to the spherical wavefront of a standard dynamic driver cone. The shape of a wavefront determines how sound interacts with the ear canal. A plane wave travels parallel rather than radiating outward from a point source. This creates a different spatial interaction with the listener's anatomy.
The plane wavefront contributes to the wide, coherent soundstage that planar IEMs are noted for. Instruments occupy distinct locations in the stereo field rather than blurring together. Depth cues, the sense of front-to-back layering in a recording, are rendered with greater clarity. This is one of the acoustic properties that distinguishes planar from dynamic driver performance in blind listening tests.
Total harmonic distortion (THD) measures unwanted harmonics introduced by the driver during reproduction. These are frequencies that were not in the original signal but are generated by imperfections in the driver's mechanical movement. Planar drivers produce exceptionally low THD due to their controlled diaphragm movement and even magnetic drive.
The diaphragm is sandwiched between two magnetic arrays, creating a symmetric magnetic field. This symmetry reduces nonlinear distortion that occurs when a driver's mechanical properties change with diaphragm position. The result is clean, precise character at high listening levels. Planar IEMs maintain accuracy when pushed to volume levels that would cause dynamic drivers to distort audibly.
Campfire Audio Planar IEMs

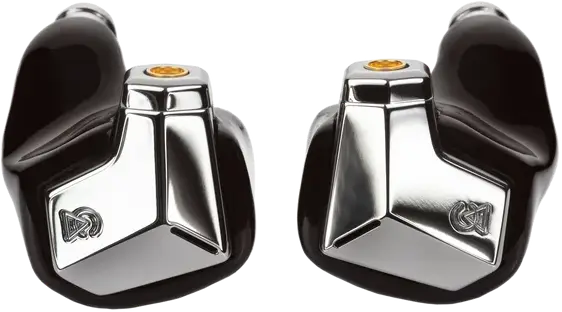

Supermoon uses a single full-range 14mm planar magnetic driver tuned for versatility. It is Campfire Audio's entry point to planar IEM performance and was among the first commercially successful planar IEMs when introduced. Originally priced at $1,099, Supermoon is now available at $899, making planar technology accessible at a mid-tier price point.
The 14mm planar driver handles the entire frequency spectrum from sub-bass through treble. There are no crossovers, no hand-off between drivers, and no phase interactions between different transducer types. This single-driver approach produces coherent, phase-accurate reproduction with the wide soundstage and fast transient response characteristic of planar technology.
Supermoon drives adequately from a smartphone but responds noticeably to a better source. A dedicated DAC/amp reveals greater dynamic range, tighter bass control, and improved separation. Planar drivers are less efficient than balanced armature drivers and benefit from clean amplification, but Supermoon is not unusably quiet from typical portable sources.
Character: fast, dynamic, wide soundstage. The tuning favors energy and forward presentation rather than a laid-back signature. Bass is tight and controlled. Midrange is clear and detailed. Treble extends without harshness. For: first-time planar buyer, versatile all-genre listener, someone upgrading from dynamic driver IEMs and curious about planar characteristics.
Also available: Supermoon CIEM ($1,299), the same 14mm planar driver in a custom-molded housing. The custom fit improves isolation and low-frequency seal for enhanced bass extension and reduced ambient noise intrusion.

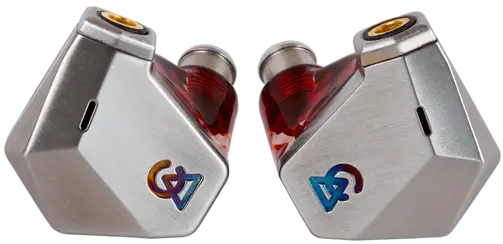

Grand Luna is Campfire Audio's first planar-BA hybrid: a 14mm planar magnetic driver paired with two high-frequency balanced armatures. The planar driver handles the core frequency range from bass through midrange. The two balanced armatures extend and refine high-frequency reproduction, adding air and harmonic detail that a single planar driver cannot achieve alone.
Grand Luna is a different product than Supermoon, not simply a price-tier step up. The hybrid configuration produces a more complex frequency response and a distinct character. The planar driver provides the wide soundstage and controlled low-end that defines planar performance. The balanced armatures contribute speed and resolution in the treble, characteristics that BAs excel at. The crossover integration between planar and BA is tuned to produce a smooth transition rather than an audible discontinuity.
Some users find planar drivers to be too bright or energetic, often describing them as spicy or fatiguing over long listening sessions. Grand Luna offers a planar experience with smoother, warmer tonality. The hybrid tuning reduces upper midrange emphasis and treble peaks that can cause fatigue, while retaining the soundstage width and transient accuracy that make planar technology valuable.
Character: smooth, spatially accurate, laid back. Bass is present but not exaggerated. Midrange is organic and natural. Treble is refined and extended without aggression. For: the planar listener who wants BA high-frequency extension, someone sensitive to treble peaks, someone prioritizing long-session comfort over analytical detail retrieval.

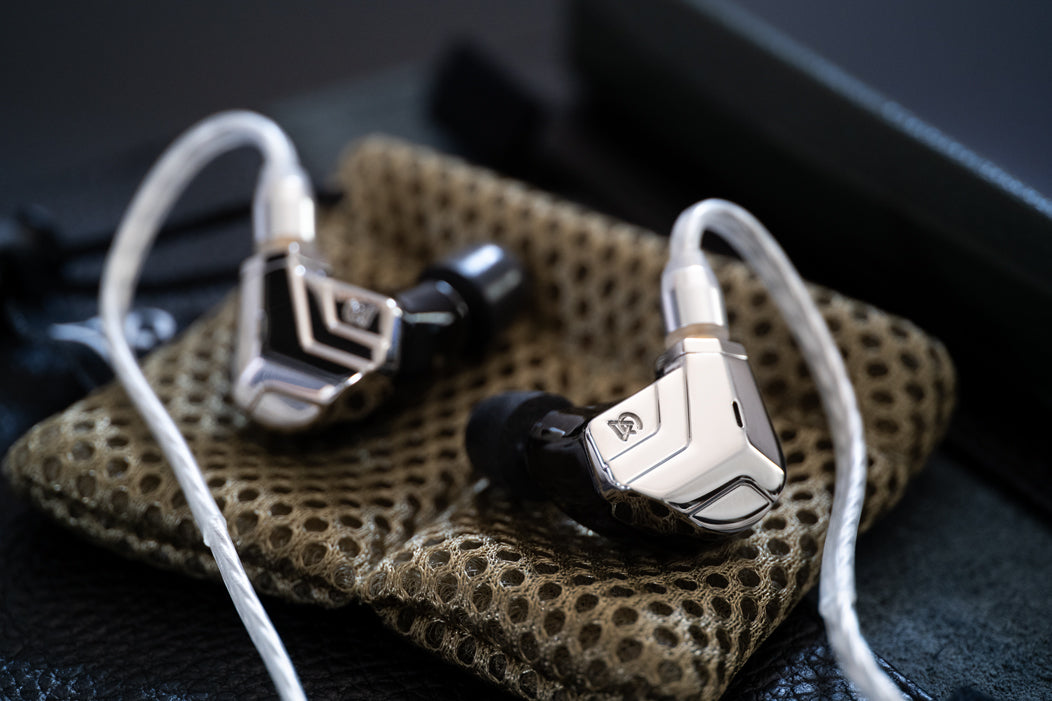

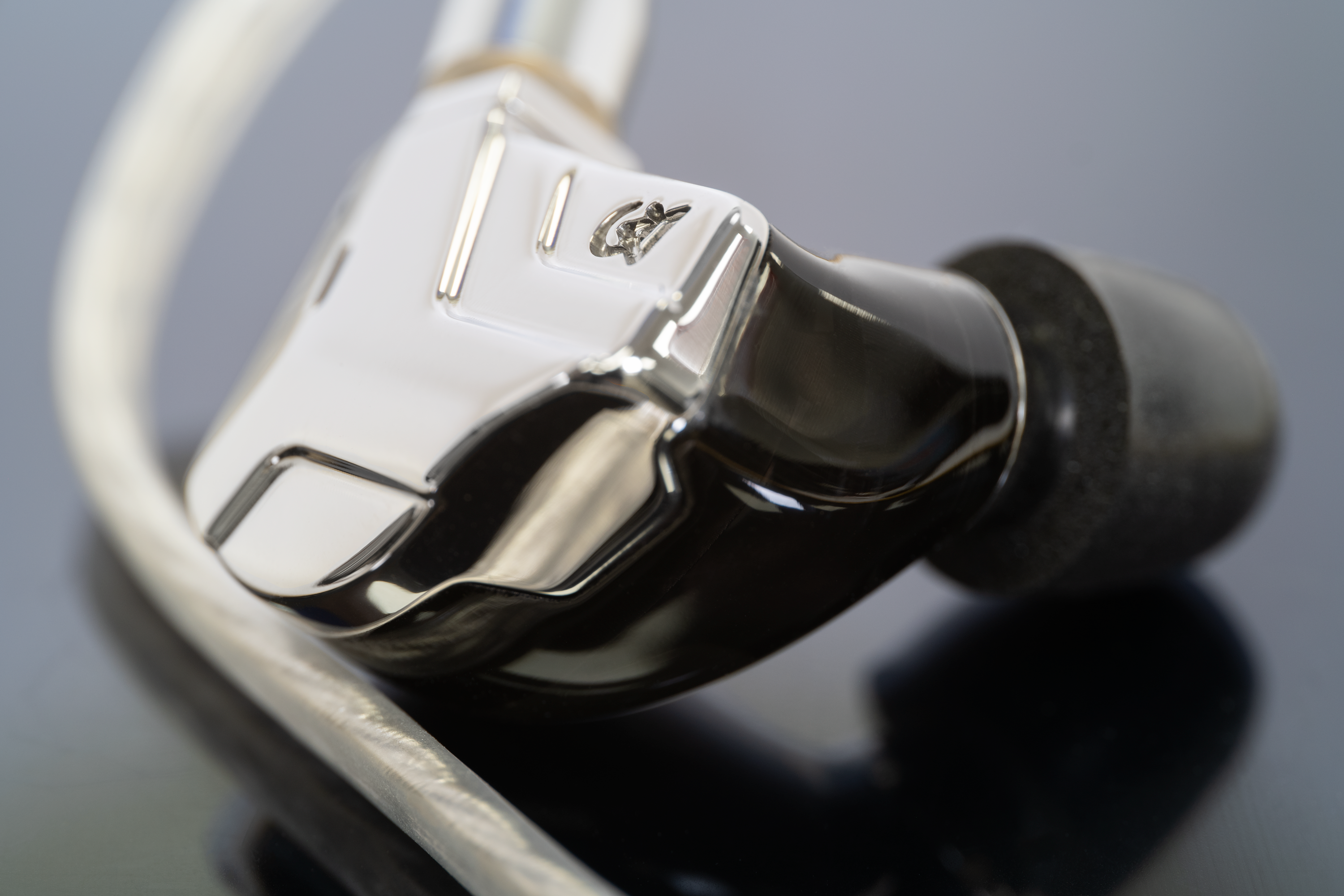

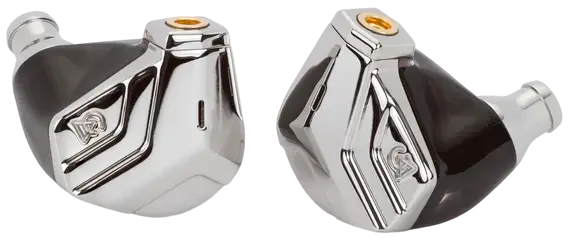

Astrolith uses dual planar magnetic drivers (14.2mm + 6mm), the most technically complex planar implementation in the Campfire Audio range. The large 14.2mm driver powers the low and mid frequencies while the unique, 6mm, micro-planar delivers high-frequencies with lightning fast response and clarity This configuration produces greater diaphragm surface area than a single driver and allows more precise frequency division between drivers optimized for different bands.
The dual-planar architecture is rare in IEM design. Most multi-driver IEMs use different driver types for different frequency ranges. Astrolith applies planar technology across the full spectrum, preserving the acoustic coherence and phase accuracy of planar reproduction while gaining the output and control advantages of a multi-driver system.
The 14.2mm driver produces velvety bass from the dual-planar low end with high-end speed and detail. The low-frequency drivers move more air than a single planar, creating physical impact without sacrificing the tightness and control that planar drivers are known for. The upper-frequency micro-planar resolves fine detail with the speed that comes from low diaphragm mass and fast impulse response.
Character: energetic, detailed, colorful. Astrolith does not pursue a neutral or reference tuning. The presentation is vivid and engaging, with strong bass presence, forward midrange, and extended treble. This is planar technology at full expression, optimized for listener engagement rather than studio monitoring. For: the planar enthusiast who wants the full expression of the format, someone stepping up from Supermoon or Grand Luna and seeking greater technical capability, someone willing to invest in flagship-tier performance.
Explore Campfire Audio's Planar IEM Range
Campfire Audio's planar IEMs span from the versatile Supermoon to the flagship Astrolith, each offering distinct expressions of planar magnetic technology. Browse the full range to find the planar IEM that matches your listening priorities, or continue reading about driver technologies to compare planar performance against dynamic, balanced armature, and hybrid configurations.
Frequently Asked Questions
A planar magnetic IEM uses a thin diaphragm with a voice coil distributed across its full surface, driven by magnetic fields on both sides. Unlike dynamic drivers, the entire diaphragm moves simultaneously, producing lower distortion, faster transient response, and a wide soundstage.
Planar IEMs are characterized by fast, precise transient response, very low harmonic distortion, and a wide, spatially accurate soundstage. They tend toward a clean, detailed character rather than the warmth and body associated with dynamic driver IEMs. Campfire Audio's Supermoon is tuned for versatility; Grand Luna and Astrolith are more specialized.
Planar IEMs are less efficient than balanced armature IEMs and generally benefit from a dedicated DAC/amp, particularly at the $899 and above price point. Campfire Audio's Supermoon drives adequately from a smartphone but responds noticeably to a better source. A dedicated amplifier is recommended but not required.
Supermoon uses a single full-range 14mm planar magnetic driver. The Grand Luna is a hybrid combining a 14mm planar driver with two balanced armature drivers for high-frequency extension. Supermoon is forward and energetic; Grand Luna is calmer and smoother.
Planar drivers propagate a plane wavefront rather than the spherical wavefront of standard dynamic drivers. The wavefront shape determines how sound interacts with the ear canal and contributes to the wide, coherent soundstage that planar IEMs are noted for. It is one of the acoustic properties that distinguishes planar from dynamic driver performance.

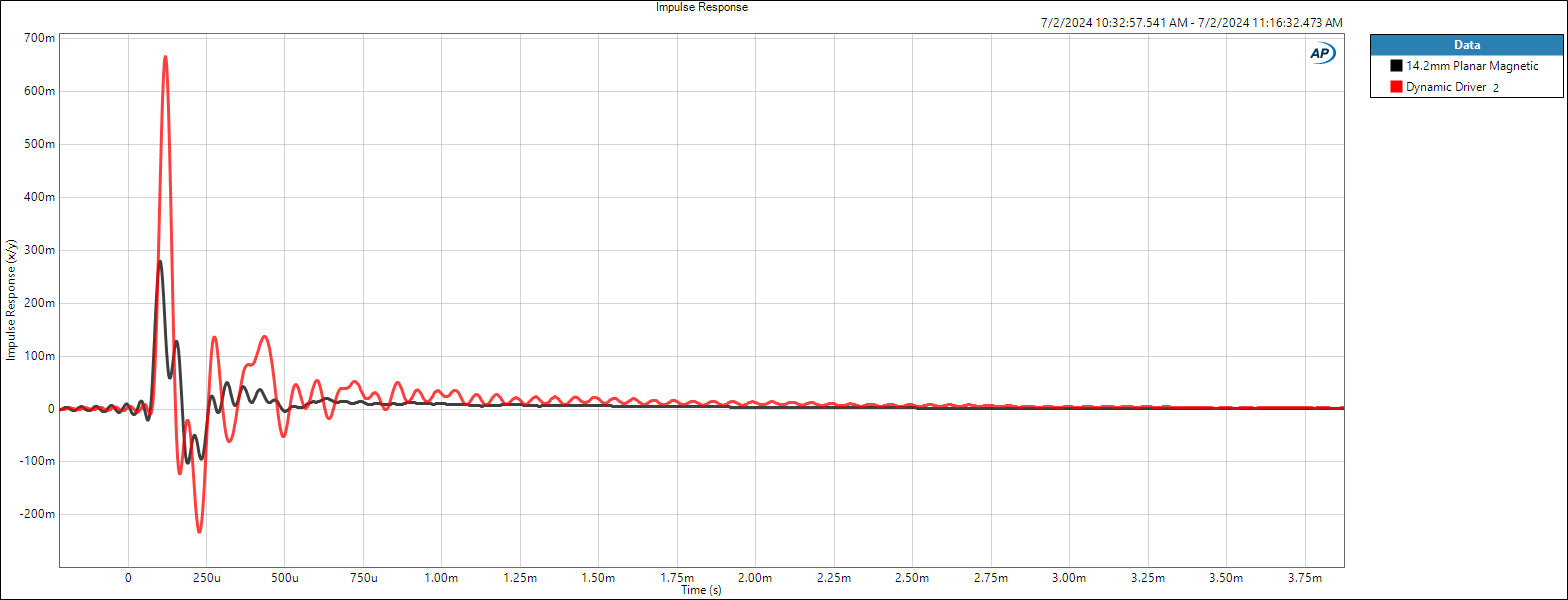

Impulse response measures a driver's ability to start and stop motion rapidly. Faster impulse response produces crisper transient reproduction: drum strikes, plucked strings, and other fast acoustic events are rendered with sharper definition and less smear between notes. Planar magnetic drivers exhibit faster impulse response than dynamic drivers of comparable size.
