A balanced armature IEM uses a compact transducer where a small armature suspended in a magnetic field moves in response to audio signal, transferring motion to the diaphragm. Balanced armatures are known for fast, precise reproduction, strong instrument separation, and efficient power draw. Campfire Audio's BA range spans from 5-driver configurations to the 10-BA Andromeda 10.

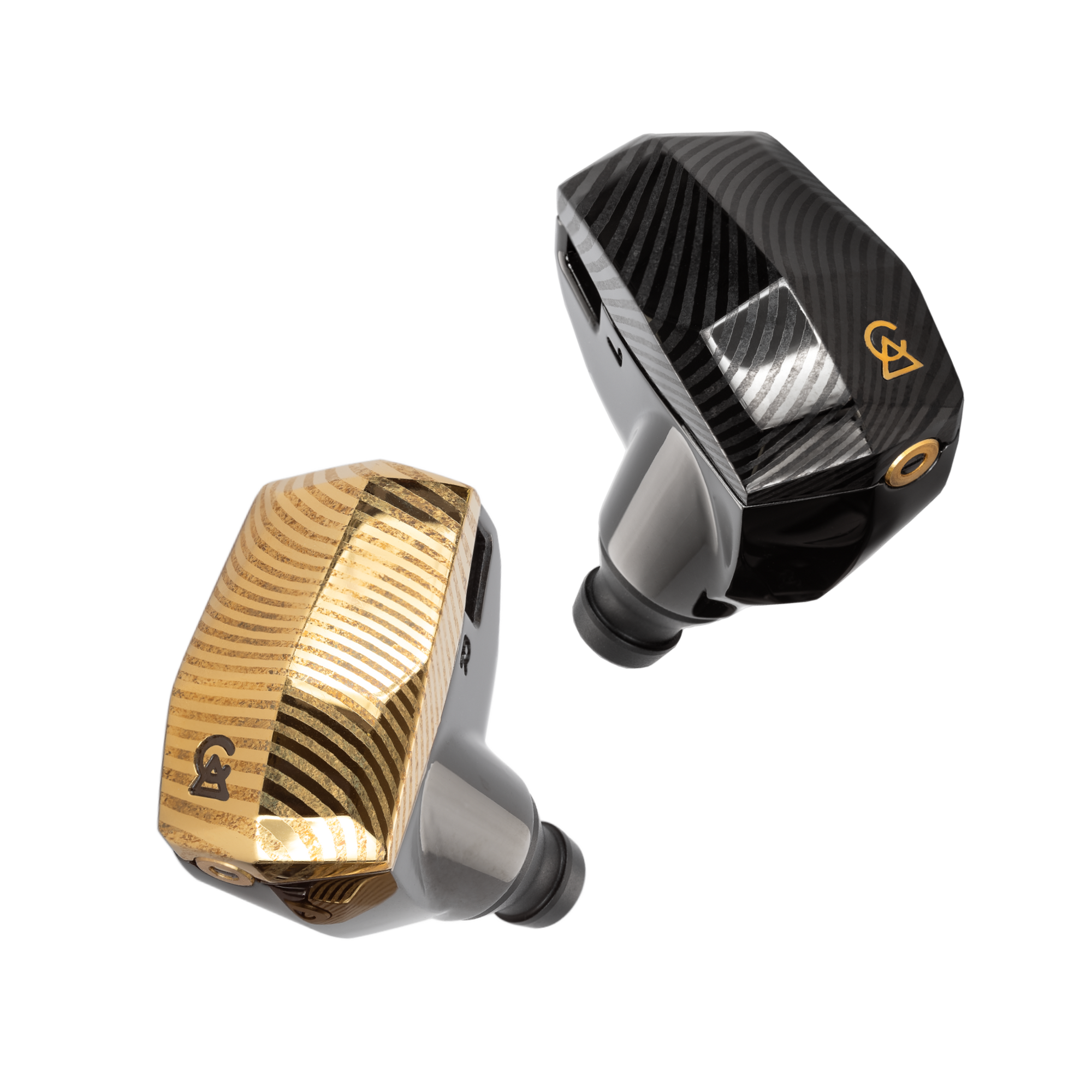

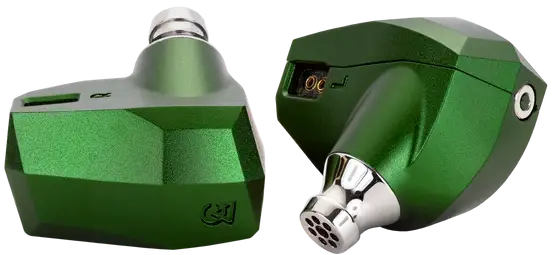

Seen above, ten balanced armatures are combined with a range of Campfire's acoustic engineering techniques to create the astounding performance of Andromeda 10.

We utilize a range of armature sizes and mechanics, from large, woofer style armatures, to small 'tweeter,' high-frequency focused drivers. These are then combined with precision engineered tuning chambers and damping values to shape each drivers performance. Finally, driver-to-driver interaction is also carefully addressed to ensure smooth transition and crossover between different frequency bands.

A balanced armature driver operates on a fundamentally different mechanical principle than dynamic or planar drivers. The armature is a small bar of magnetic material suspended between two magnets in a balanced position. When electrical current flows through a coil around the armature, it creates a magnetic field that pulls the armature toward one magnet or the other. This movement transfers to a compact diaphragm connected to the armature via a drive rod, producing sound. When the current stops, the armature returns to its balanced position, hence the name.

Balanced armature technology originated in hearing aid design, where compact size and power efficiency were critical requirements. Hearing aids needed transducers that could fit in a miniature housing while delivering adequate sound pressure with minimal battery drain. The IEM industry adopted balanced armature drivers because those same properties suit portable audio applications: small form factor, low power consumption, and the ability to produce high output from a compact package.

The comparison with dynamic driver mechanics reveals why balanced armatures sound distinct. A dynamic driver uses a relatively large voice coil and diaphragm. The voice coil has mass that must be accelerated and decelerated with each signal change. A balanced armature uses a small suspended armature with significantly less mass than a dynamic driver's moving assembly. This lower mass allows faster mechanical movement. The armature can start and stop motion more rapidly, contributing to superior transient response and the detail retrieval that balanced armatures are known for.

Balanced armature IEMs are easy to power. They present low impedance, typically 10-30 ohms, and high sensitivity, typically 100-110 dB/mW. This means most BA IEMs drive adequately from smartphones and portable digital audio players without requiring an external amplifier. The practical advantage in portable audio is significant: you can use a BA IEM with any source device without worrying about whether it has sufficient output power. This contrasts with planar magnetic IEMs, which are less efficient and benefit noticeably from dedicated amplification.

Three specific techniques differentiate Campfire Audio's balanced armature implementations from standard multi-BA configurations.

Phase Harmony Array (Fathom, Ponderosa): Phase Harmony is Campfire Audio's proprietary multi-BA driver arrangement designed to minimize phase distortion at crossover points between driver pairs. In a multi-driver IEM, frequencies must transition from one driver to another at specific crossover points. If the drivers have different phase responses, the transition can produce audible discontinuities, cancellations, or peaks. Phase Harmony addresses this through driver selection, positioning, and acoustic tuning.

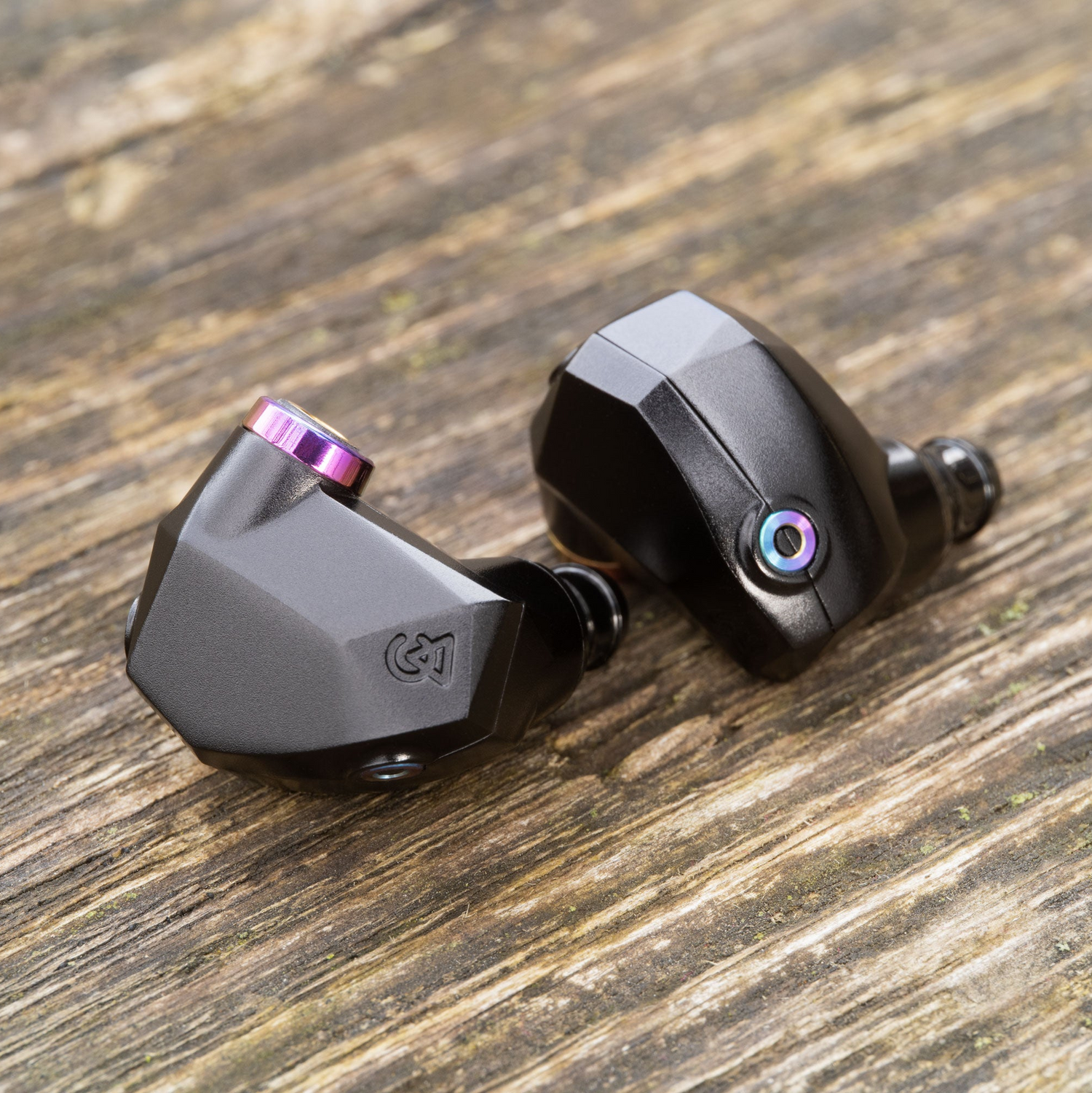

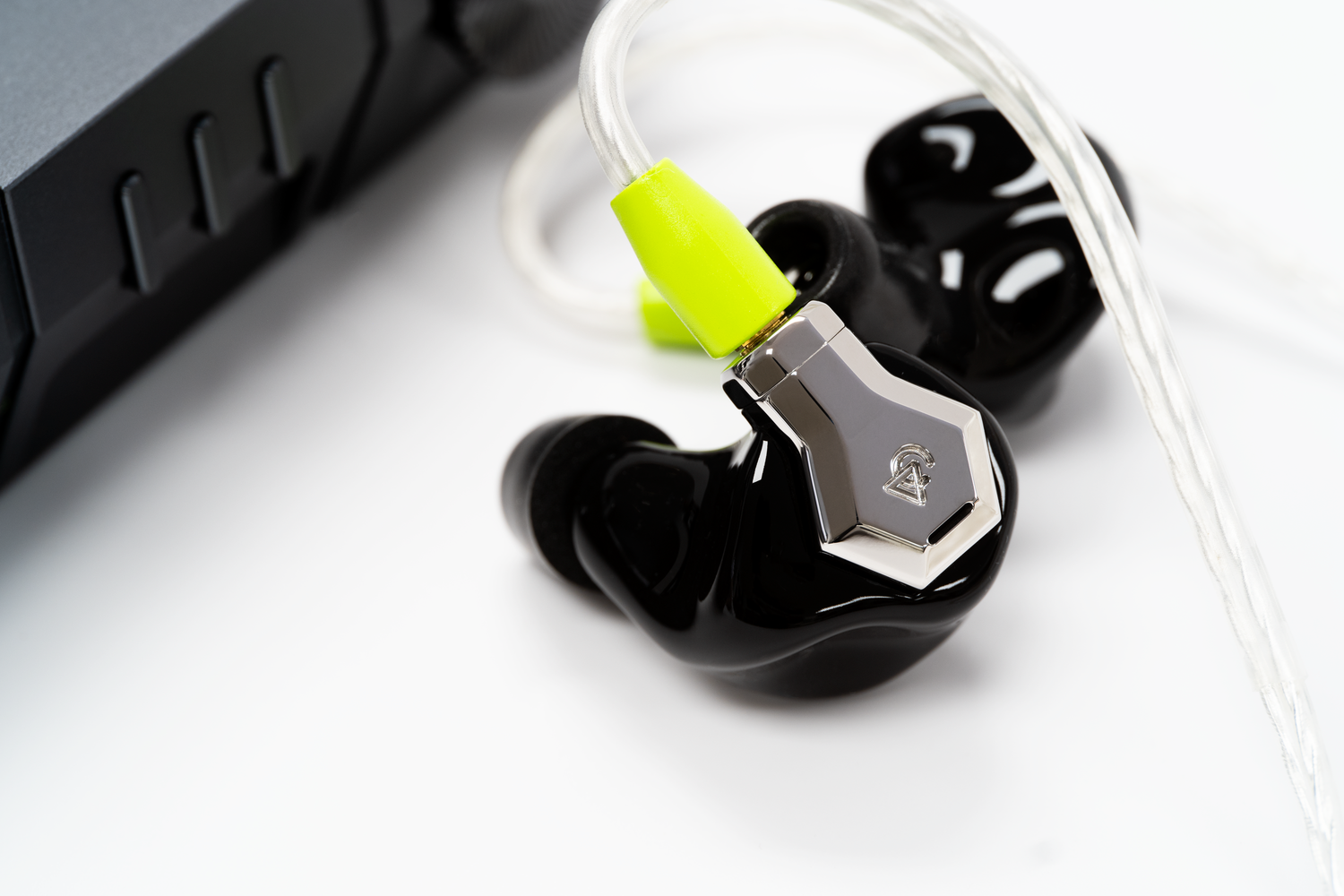

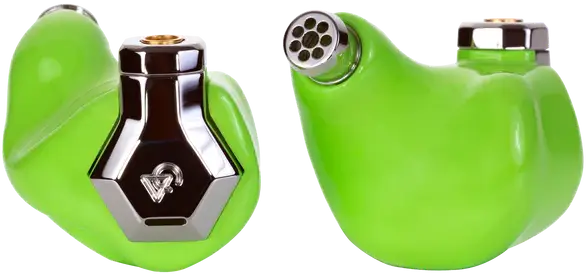

In the Fathom, which uses six balanced armatures arranged as dual low, dual mid, and dual high, the three driver pairs are positioned and tuned so that frequency handoffs between pairs produce minimal phase error. The result is smoother transitions and a more coherent, less colored presentation of the frequency range. In the Ponderosa, which uses five balanced armatures, the Phase Harmony approach applies the same principle to a five-driver array. The tuning chambers and damping values for each driver are precision-engineered to maintain phase alignment at the crossover points.

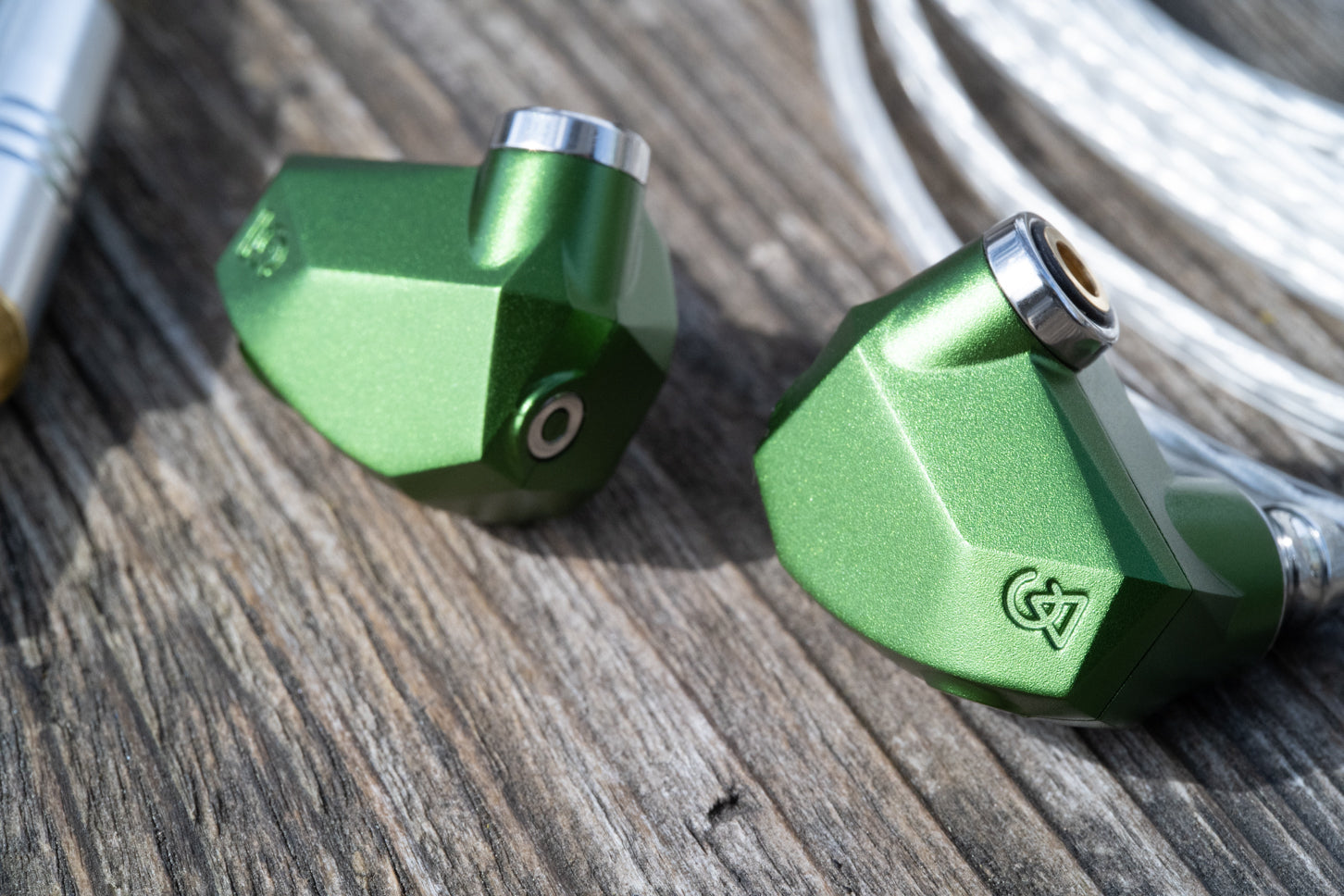

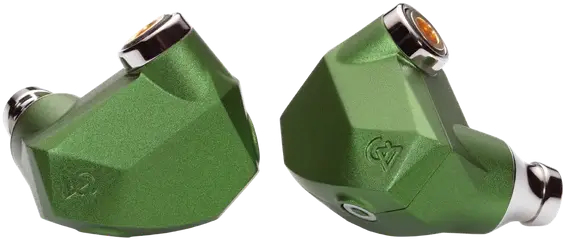

Dual-Diaphragm Balanced Armatures (Andromeda Emerald Sea): The Andromeda Emerald Sea uses five dual-diaphragm balanced armatures. Each driver contains two diaphragms rather than the standard single diaphragm found in conventional BA drivers. The dual-diaphragm configuration increases the driver's output capability and reduces distortion at a given volume level. Two diaphragms driven by the same armature produce more acoustic output than a single diaphragm of comparable size, which allows the driver to maintain linearity at higher sound pressure levels.

The Andromeda Emerald Sea represents a top-to-bottom revision of the classic Andromeda five-BA configuration. The dual-diaphragm drivers create a richer sound and fuller output, producing a tone with analog warmth that distinguishes it from the standard single-diaphragm Andromeda implementations. This is a proprietary driver development specific to Campfire Audio's Andromeda platform.

Driver Size and Tuning Chamber Variation: Campfire Audio uses a range of armature sizes across its BA lineup, from large woofer-style BAs for low frequencies to small tweeter BAs for high-frequency extension. Each driver is paired with precision-engineered tuning chambers that shape its frequency response and interaction with adjacent drivers. The tuning chamber volume, length, and damping values determine how each BA driver's output reaches the nozzle and ultimately the listener's ear.

The combination of driver size selection, tuning chamber design, and damping variation allows Campfire Audio to shape the frequency response and phase characteristics of each driver independently. This is the engineering work that distinguishes a well-tuned multi-BA IEM from a poorly executed one. The drivers are selected and configured specifically for their intended frequency band, not simply installed in a housing and crossed over at arbitrary points.
