highlighting strengths
hybrid-design iems
Multi-driver configurations
Carefully blended - expertly crafted
A hybrid IEM uses two or more different driver types in a single housing, each handling the frequency range where its mechanical properties perform best. Typical hybrids pair a dynamic driver for bass with balanced armatures for midrange and treble. Campfire Audio's hybrid range extends to planar-BA configurations and flagship multi-driver designs.
The Engineering Rationale for Hybrid Design
Hybrid IEM design exists because no single driver type excels across the full frequency spectrum. Dynamic drivers produce natural, powerful bass reproduction. Their large diaphragm and air-moving mass create physical impact and warmth in the low end. Balanced armature drivers excel at precision, detail retrieval, and high-frequency accuracy. Their compact mechanics and low mass allow fast, nuanced response in the upper registers.
Neither driver type is ideal everywhere. A dynamic driver covering high frequencies can produce excessive distortion as the diaphragm struggles with rapid movement at small amplitudes. A balanced armature covering bass can sound thin or forced because its small diaphragm cannot move enough air for convincing low-frequency reproduction. Each driver type has an optimal operating range where its mechanical strengths dominate and its weaknesses remain inaudible.
Hybrid design assigns each driver to the frequency band where its properties are strongest, then uses a crossover network to hand off between drivers at a defined point. The dynamic driver handles bass and lower midrange, typically from 20Hz to 800Hz or 2kHz depending on the crossover design. The balanced armature handles upper midrange and treble, from the crossover point through 16kHz or beyond. This division allows each driver to operate in its comfort zone.
The engineering challenge is that different driver types have different impedance characteristics, sensitivity levels, and phase responses. A dynamic driver might have an impedance of 18 ohms and a sensitivity of 94dB/mW. A balanced armature might have an impedance of 35 ohms and a sensitivity of 105dB/mW. Getting two fundamentally different mechanical systems to meet at a crossover point without audible seams, phase errors, or tonal discontinuities requires precision acoustic engineering and iterative measurement. This is the work that distinguishes a well-executed hybrid from a poorly implemented one.
Campfire Audio has produced over fifteen distinct hybrid IEM configurations over a decade of design, accumulating crossover engineering expertise across entry-level, mid-tier, and flagship products. This experience shows in the coherence of Campfire Audio's hybrid tuning, where the transition between driver types sounds smooth rather than abrupt.
Types of Hybrid Configurations in the Campfire Audio Range
Three distinct hybrid architectures appear in the active Campfire Audio lineup, each representing a different approach to multi-driver integration.
The most common hybrid configuration in the IEM market. A dynamic driver handles bass and lower midrange; one or more balanced armatures handle midrange and treble. Single-BA hybrids like Iris and Dorado 2020 use one dynamic driver and one balanced armature. Multi-BA hybrids like Clara and Bonneville CIEM use one dynamic driver and three balanced armatures, with the BA array divided into dedicated midrange and high-frequency drivers for finer frequency control.

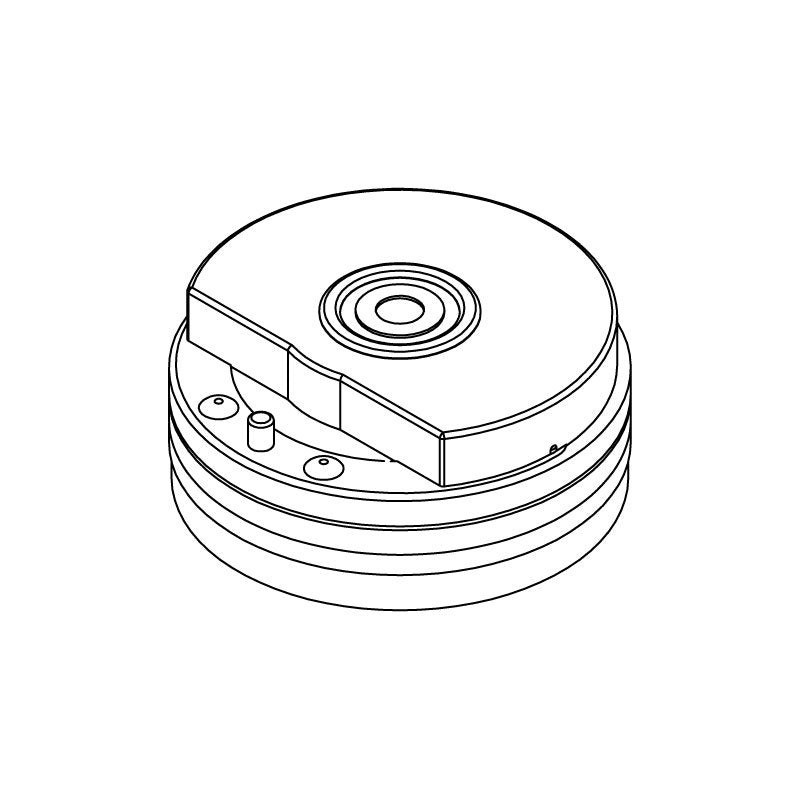

Grand Luna is Campfire Audio's first planar-BA hybrid. A 14mm planar magnetic driver handles the core frequency range from bass through midrange. Two high-frequency balanced armatures extend the high end with the speed and detail that BAs excel at. This configuration is rare in the IEM market. It combines planar's wide soundstage and low distortion with BA's treble precision.
Chimera represents the most ambitious hybrid architecture in the Campfire Audio range. It combines four driver technologies in a single IEM: a 10mm bone conduction driver for tactile sub-bass impact, a 10mm True Glass dynamic driver for midrange clarity, three balanced armatures (one mid-frequency dual-diaphragm BA and two high-frequency BAs), and four electrostatic super-tweeters for extreme treble extension. This four-way configuration addresses every aspect of the frequency spectrum with purpose-built transducer technology.
Diaphragm Materials in Campfire Audio's Hybrid Dynamic Drivers
Different dynamic driver diaphragm materials produce distinct sonic characters. Campfire Audio uses several proprietary implementations across its hybrid lineup:

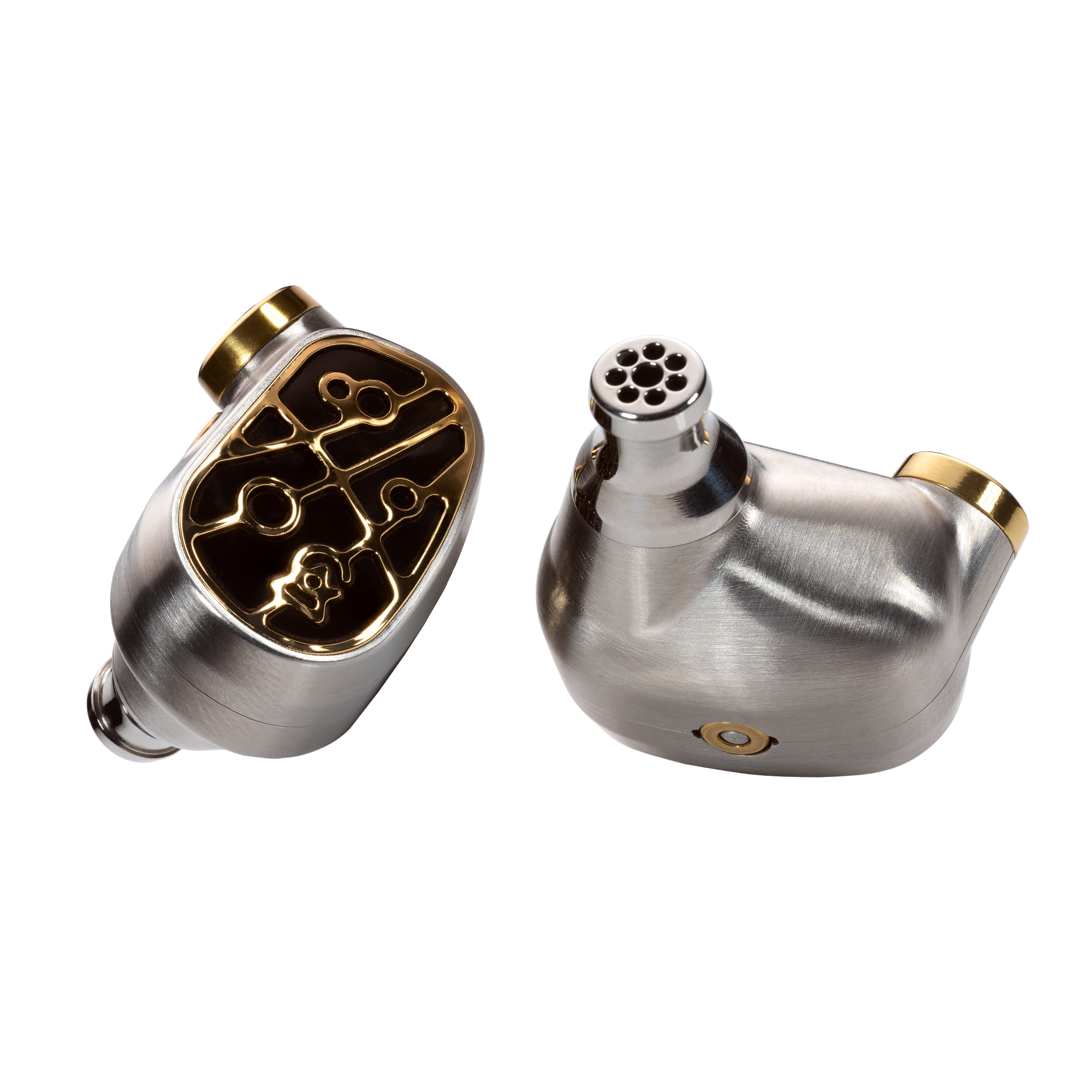

ADLC (Amorphous Diamond-Like Carbon) - Used in Iris, Dorado 2020, and the discontinued Solaris. ADLC coating increases diaphragm stiffness and reduces distortion at high frequencies. The coating allows the diaphragm to move with greater accuracy and faster response, improving transient speed and eliminating smearing. Character: precise, controlled, extended high-frequency detail.
Biocellulose - Used in Clara. A natural organic material derived from bacterial cellulose. The diaphragm has a fibrous structure that produces a warm, textured low end with natural tonality. Character: rich, organic, musical warmth in the bass and midrange.
True Glass Dynamic Driver - Used in Chimera. A 10mm glass diaphragm representing Campfire Audio's most advanced dynamic driver implementation. Glass combines high rigidity with low mass, delivering exceptional clarity and transient response across the frequency range.
Dual-Magnet System - Used in Clara, Bonneville, and Cascara . Two magnets create a stronger, more uniform magnetic field around the voice coil, improving the driver's ability to start and stop diaphragm movement precisely. This translates to tighter bass response and better control at high volumes.
The choice of diaphragm material is a tuning decision, not a specification hierarchy. ADLC is not objectively better than biocellulose; each suits different sonic targets and listener preferences.
Active Hybrid IEMs from Campfire Audio

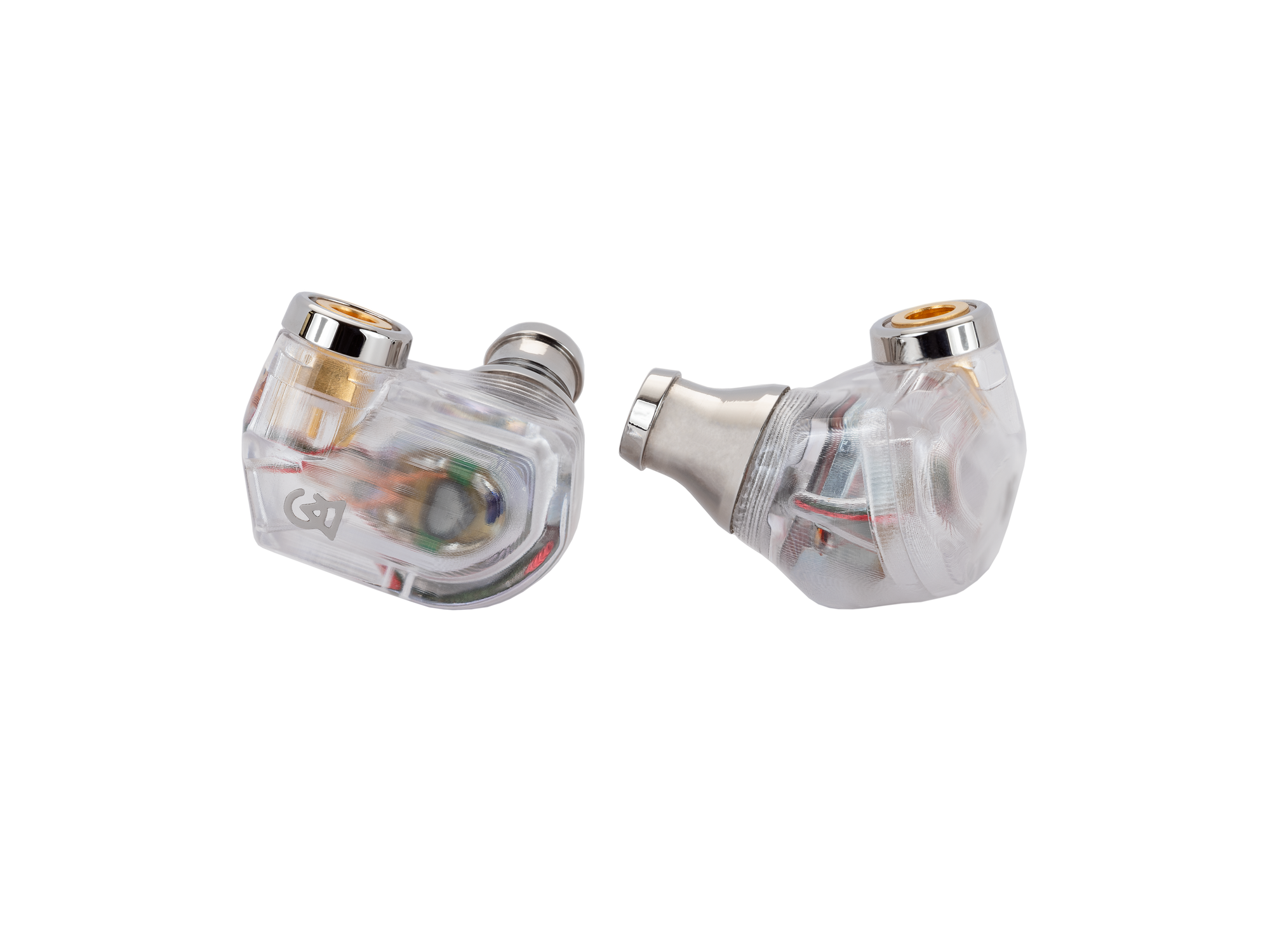

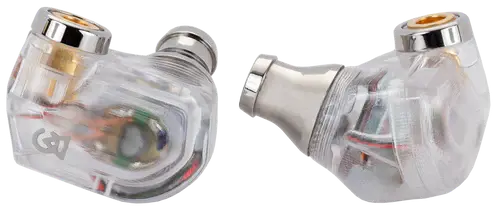

Iris is Campfire Audio's entry-level hybrid IEM. It uses a 10mm ADLC dynamic driver for bass and lower midrange, paired with a single high-frequency balanced armature for treble extension. The ADLC driver delivers controlled bass and natural midrange reproduction. The BA extends treble clarity and detail without harshness. The transparent acrylic housing reveals the driver architecture inside.
This is the accessible entry into hybrid driver performance. The two-driver configuration keeps complexity and cost down while delivering the fundamental benefit of hybrid design: dynamic bass impact combined with BA treble precision. Iris demonstrates what a well-executed simple hybrid can achieve without the driver count or price of multi-BA configurations.
Character: balanced, detailed, versatile. Iris is an energetic, v-shaped tuning, that brings high-performance for entry into premium IEM use. For: first-time hybrid buyer, someone upgrading from single-driver IEMs, budget-conscious listener who wants hybrid performance.
Iris is Campfire Audio's entry-level hybrid IEM. It uses a 10mm ADLC dynamic driver for bass and lower midrange, paired with a single high-frequency balanced armature for treble extension. The ADLC driver delivers controlled bass and natural midrange reproduction. The BA extends treble clarity and detail without harshness. The transparent acrylic housing reveals the driver architecture inside.
This is the accessible entry into hybrid driver performance. The two-driver configuration keeps complexity and cost down while delivering the fundamental benefit of hybrid design: dynamic bass impact combined with BA treble precision. Iris demonstrates what a well-executed simple hybrid can achieve without the driver count or price of multi-BA configurations.
Character: balanced, detailed, versatile. Iris is an energetic, v-shaped tuning, that brings high-performance for entry into premium IEM use. For: first-time hybrid buyer, someone upgrading from single-driver IEMs, budget-conscious listener who wants hybrid performance.

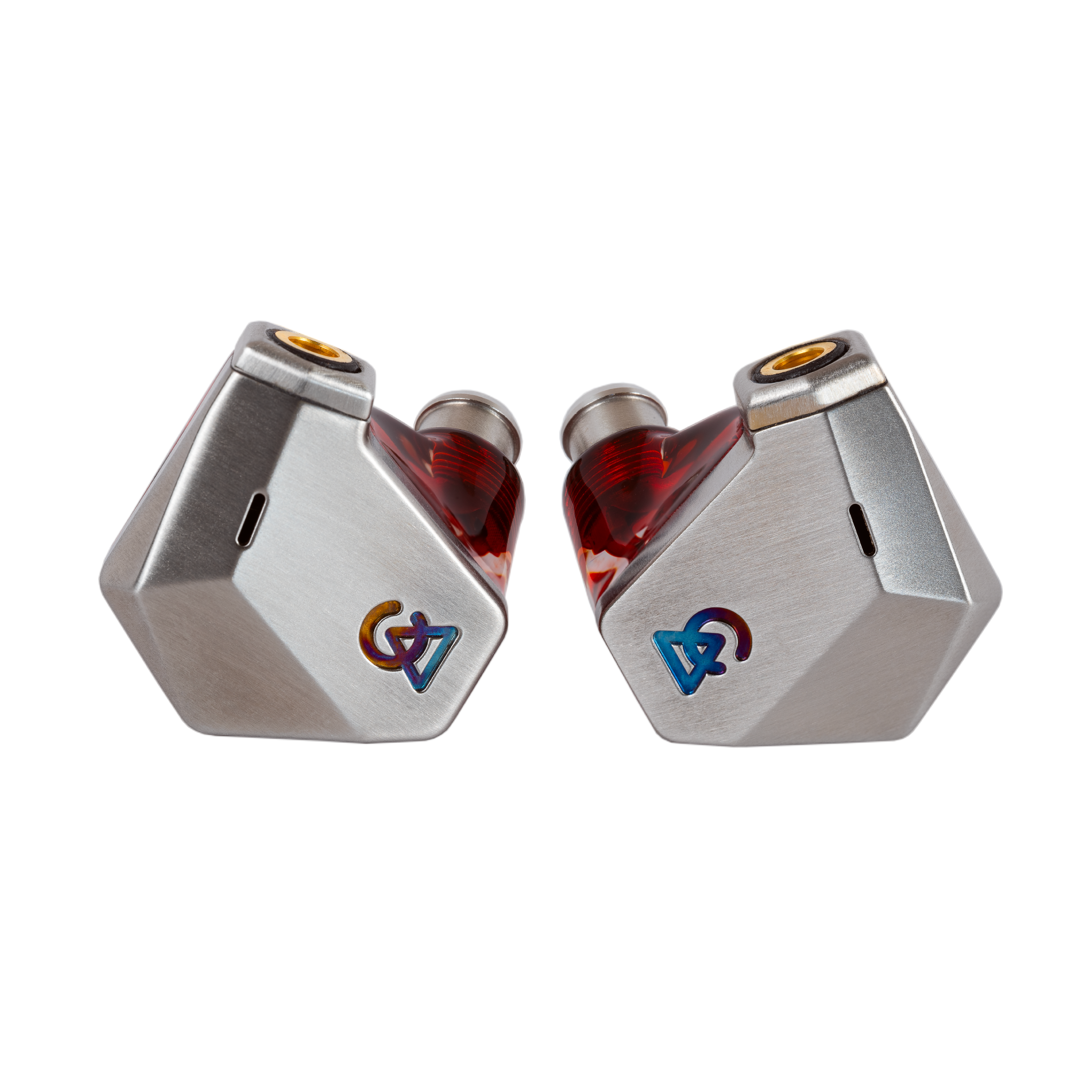

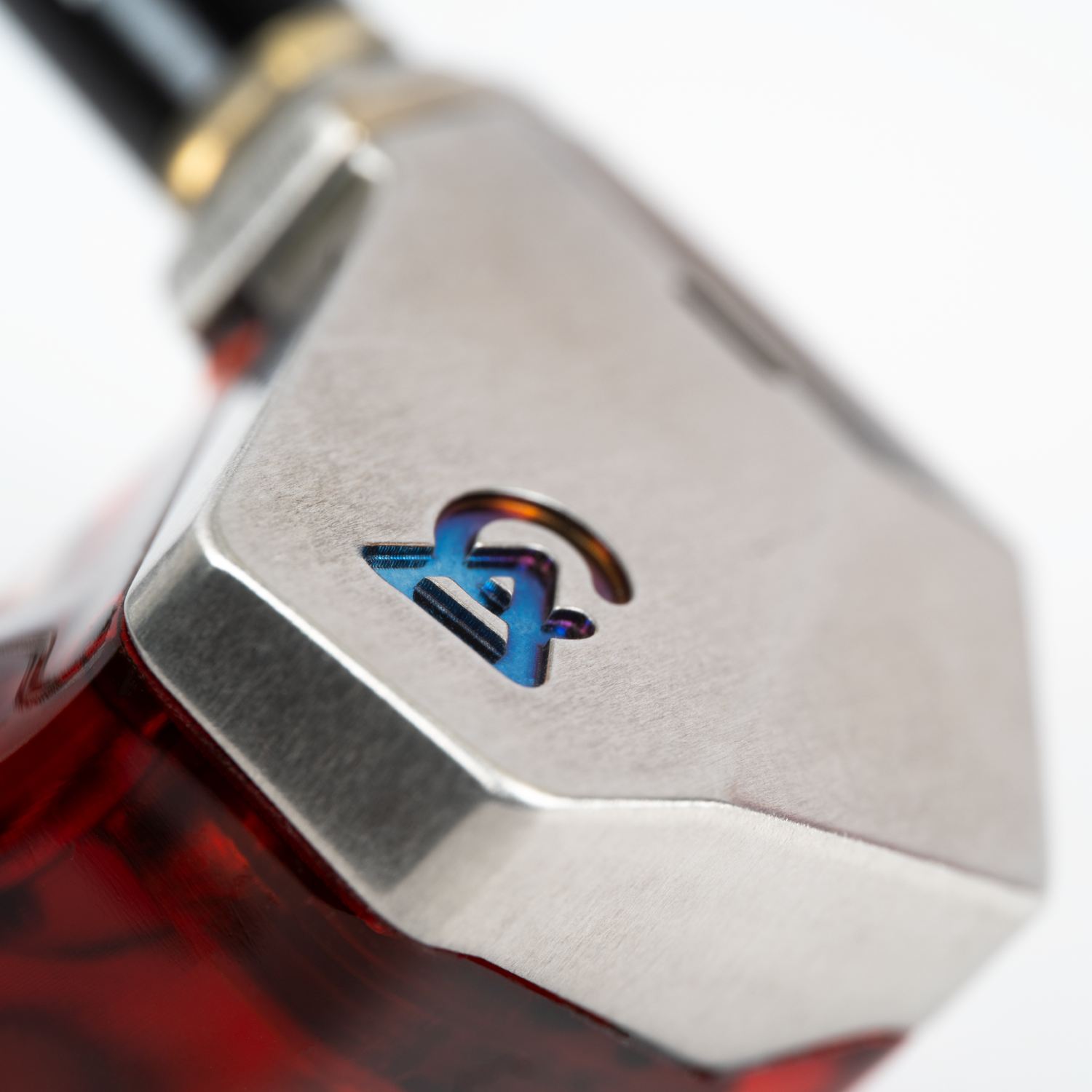

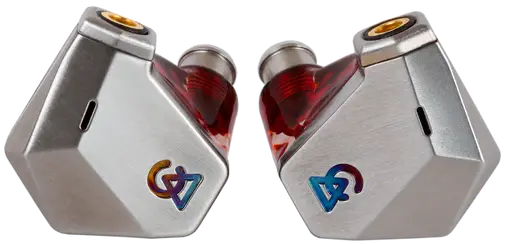

Grand Luna is Campfire Audio's first planar-BA hybrid. It combines a 14mm planar magnetic driver with two high-frequency balanced armatures. The planar driver handles the core frequency range from bass through midrange, bringing the wide soundstage and low distortion characteristic of planar technology. The two balanced armatures refine the upper registers with the speed and detail retrieval that BAs excel at.
This is a unique configuration in the IEM market. Most hybrids pair dynamic drivers with BAs. Grand Luna applies planar technology to the low and midrange, then hands off to BAs for the treble. The result combines planar's spatial accuracy and controlled low end with BA's high-frequency extension.
Character: smooth, spatially accurate, laid back. The tuning reduces upper midrange emphasis and treble peaks that can cause fatigue in more energetic planar IEMs. Bass is present but not exaggerated. Midrange is organic. Treble is refined and extended without aggression. For: the planar listener who wants BA high-frequency extension, someone sensitive to treble peaks, long-session comfort priority.
Grand Luna is Campfire Audio's first planar-BA hybrid. It combines a 14mm planar magnetic driver with two high-frequency balanced armatures. The planar driver handles the core frequency range from bass through midrange, bringing the wide soundstage and low distortion characteristic of planar technology. The two balanced armatures refine the upper registers with the speed anClara is a professional hybrid IEM developed in collaboration with Alessandro Cortini of Nine Inch Nails. It uses a 10mm dual-magnet biocellulose dynamic driver paired with three balanced armatures: one mid-frequency BA and two high-frequency BAs. This is a multi-BA hybrid, not a simple two-driver design. The three-BA array allows finer control over midrange and treble tuning than a single BA can achieve.

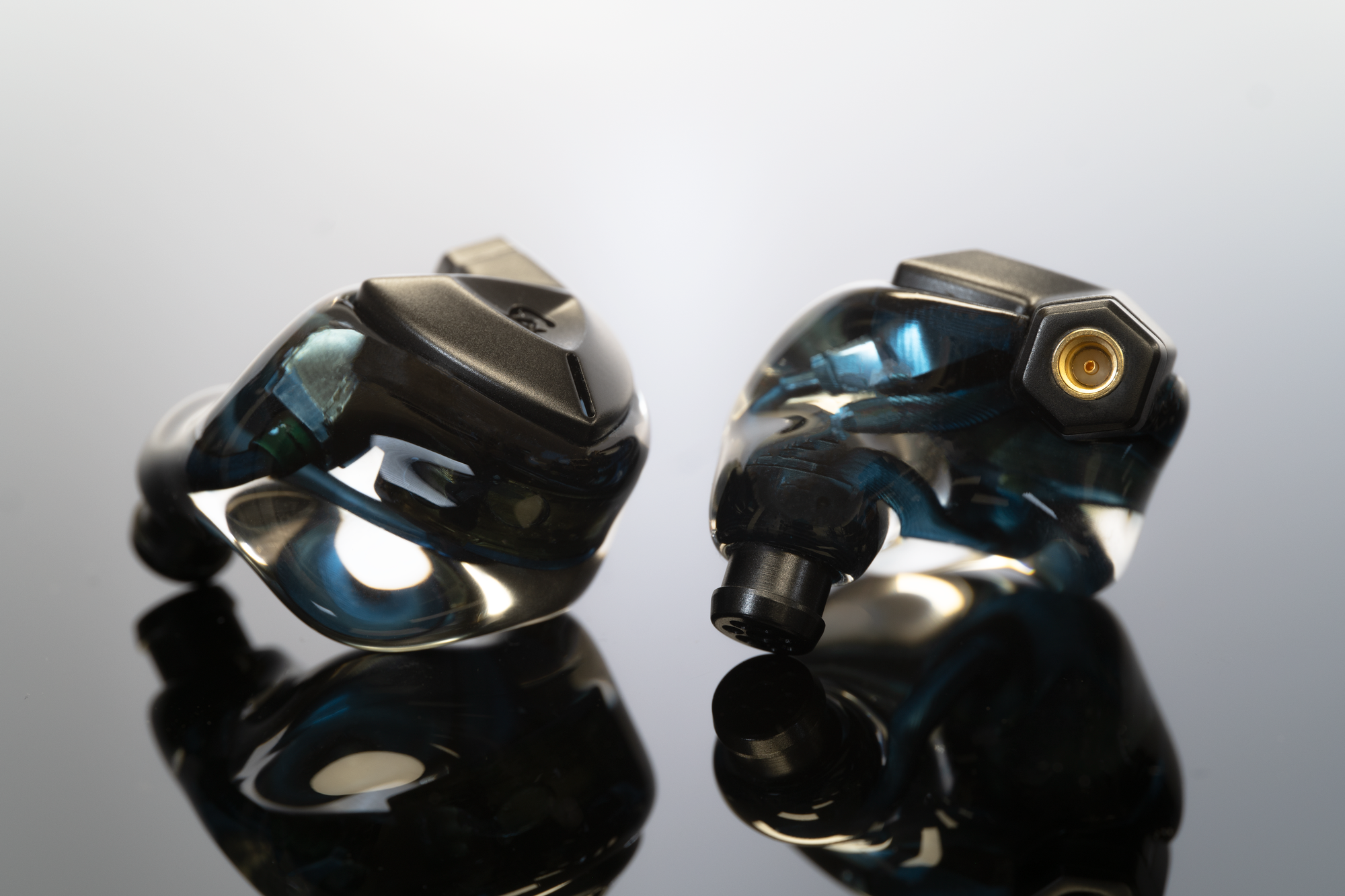

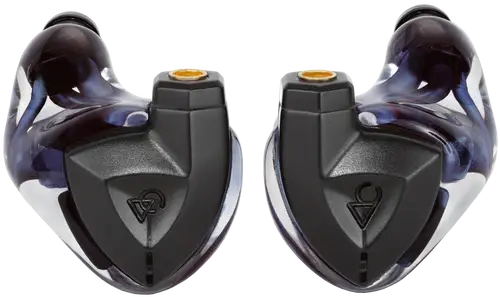

The biocellulose dynamic driver delivers rich, textured low end with warm, natural character. Biocellulose is an organic material with a fibrous structure that produces tonality distinct from synthetic diaphragm materials. The dual-magnet system increases driver control and efficiency. The three-BA array provides midrange precision and high-frequency extension with the detail retrieval that professional musicians require for critical listening and stage monitoring.
Clara received Darko.Audio Best of 2024 recognition and Performance IEM of 2024 from the HeadFi Watercooler community. It represents Campfire Audio's vision of what a flagship hybrid should deliver: natural musicality with multi-driver technical precision.
Character: warm, natural, detailed. Bass is rich and textured. Midrange is organic and present. Treble is refined and extended. For: musicians, critical listeners, audiophiles who want natural musicality with multi-driver precision, Alessandro Cortini fans.d detail retrieval that BAs excel at.
This is a unique configuration in the IEM market. Most hybrids pair dynamic drivers with BAs. Grand Luna applies planar technology to the low and midrange, then hands off to BAs for the treble. The result combines planar's spatial accuracy and controlled low end with BA's high-frequency extension.
Character: smooth, spatially accurate, laid back. The tuning reduces upper midrange emphasis and treble peaks that can cause fatigue in more energetic planar IEMs. Bass is present but not exaggerated. Midrange is organic. Treble is refined and extended without aggression. For: the planar listener who wants BA high-frequency extension, someone sensitive to treble peaks, long-session comfort priority.

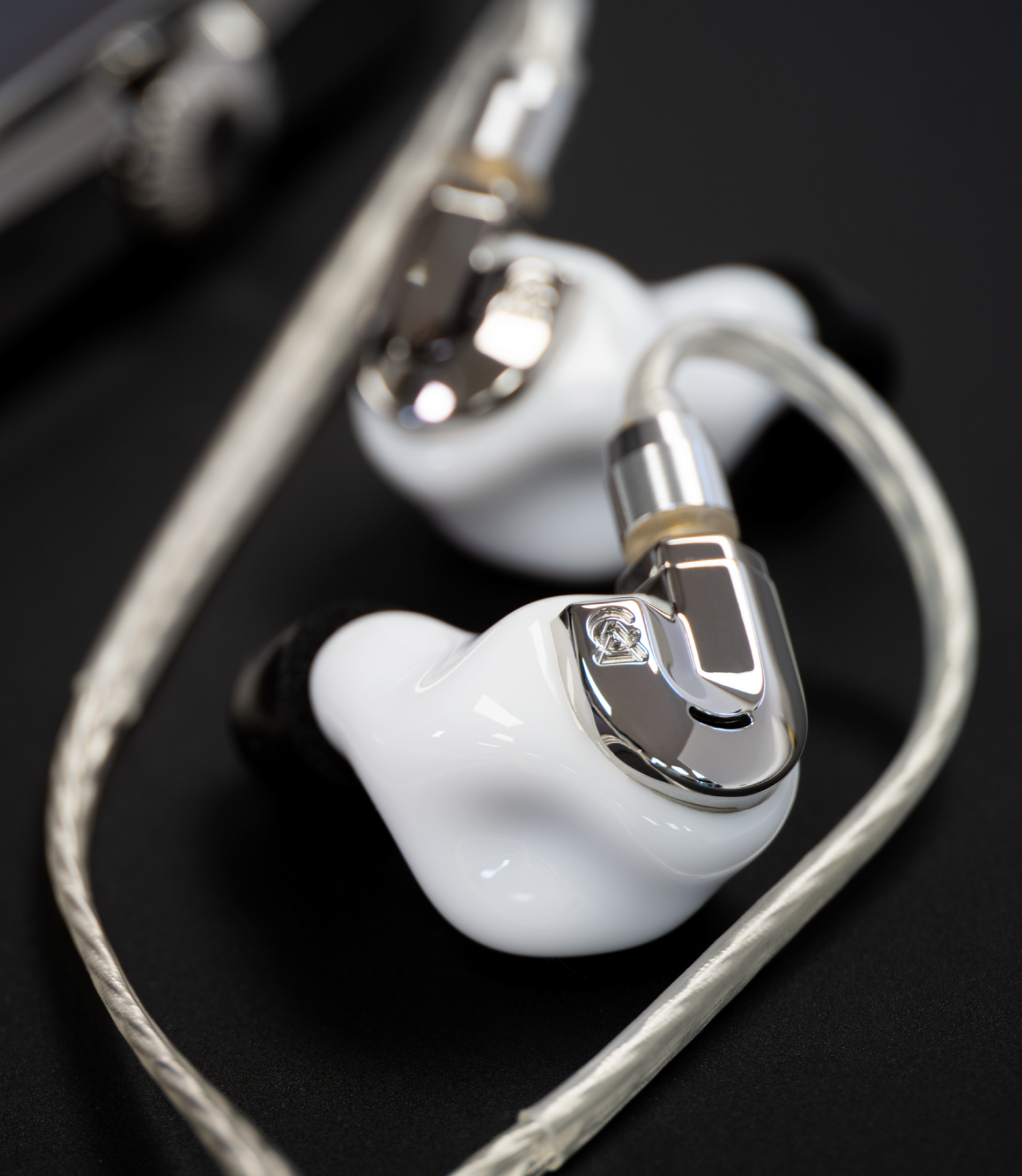

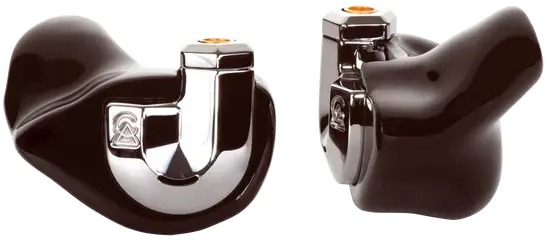

Bonneville CIEM is Campfire Audio's flagship custom-fit hybrid. It uses the same driver architecture as Clara: a 10mm dual-magnet dynamic driver paired with three balanced armatures (1x mid, 2x high). The drivers are housed in a custom-molded shell built from impressions of the user's ear canals. Custom fit provides stage-ready passive isolation and fit stability that universal-fit IEMs cannot match.
The custom shell eliminates fit variables and provides consistent acoustic seal. This improves low-frequency extension and isolation, critical for stage performers who need to hear their in-ear mix without ambient bleed. The driver configuration delivers the same multi-BA hybrid precision as Clara but optimized for professional use contexts.
Character: precise, controlled, stage-ready. The tuning favors clarity and separation over warmth, as stage performers need to distinguish individual mix elements in loud environments. For: professional musicians and stage performers who want flagship hybrid experience in a custom fit, touring artists who need reliable isolation, critical listeners who prioritize fit consistency.

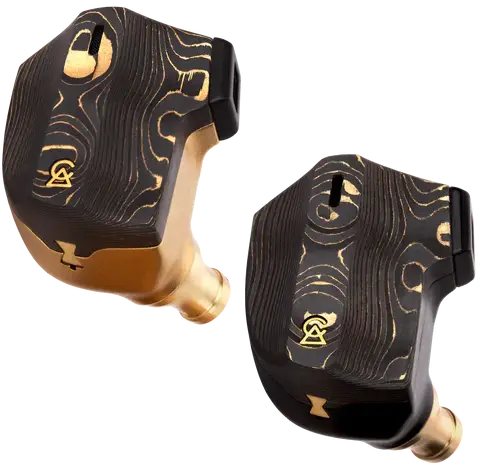

Chimera is Campfire Audio's most technically ambitious IEM. It combines four driver technologies in a quad-brid configuration: a 10mm bone conduction driver, a 10mm True Glass dynamic driver, three balanced armatures (one mid-frequency dual-diaphragm BA and two high-frequency BAs), and four electrostatic super-tweeters. This architecture addresses every aspect of the frequency spectrum with purpose-built transducer technology.
The bone conduction driver transmits sub-bass vibrations adding tactile low-frequency information that supplements air-conducted sound. The True Glass dynamic driver handles midrange with exceptional clarity and transient response. The three-BA array covers mid and high frequencies with precision. The four electrostatic super-tweeters extend treble response up to 20kHz with near-zero distortion.
Integrating four driver types requires acoustic engineering beyond standard crossover design. Each driver type has different electrical characteristics, phase response, and acoustic output patterns. Making them work as a cohesive system rather than four separate sonic signatures demands extensive measurement verification and tuning. Chimera represents the cutting edge of what becomes possible when multiple transducer technologies complement rather than compete with each other.
Character: technically comprehensive, tactile, extended. Every frequency range is handled by a driver optimized for that specific band. For: flagship collectors, audiophiles seeking the ultimate expression of multi-driver integration, listeners who want every available driver technology in one IEM.
Explore Campfire Audio's Hybrid IEM Range
Campfire Audio's hybrid IEMs span from the accessible Iris to the flagship Chimera, each offering distinct expressions of multi-driver integration. Choose your entry point based on your budget and listening priorities, or continue reading about driver technologies to compare hybrid configurations against single-driver designs.
Frequently Asked Questions
A hybrid IEM uses two or more different driver types in a single housing. Most commonly, a dynamic driver handles bass and a balanced armature handles midrange and treble. Campfire Audio's hybrids also include planar-BA configurations and multi-driver designs with up to four balanced armatures alongside a dynamic driver.
Not categorically. A well-executed hybrid assigns each driver to the frequency range where its mechanical properties perform best, producing broader frequency coverage. However, hybrid IEMs require precise crossover design to avoid phase discontinuities between drivers. A single-driver IEM offers a more coherent, unified presentation with no crossover network.

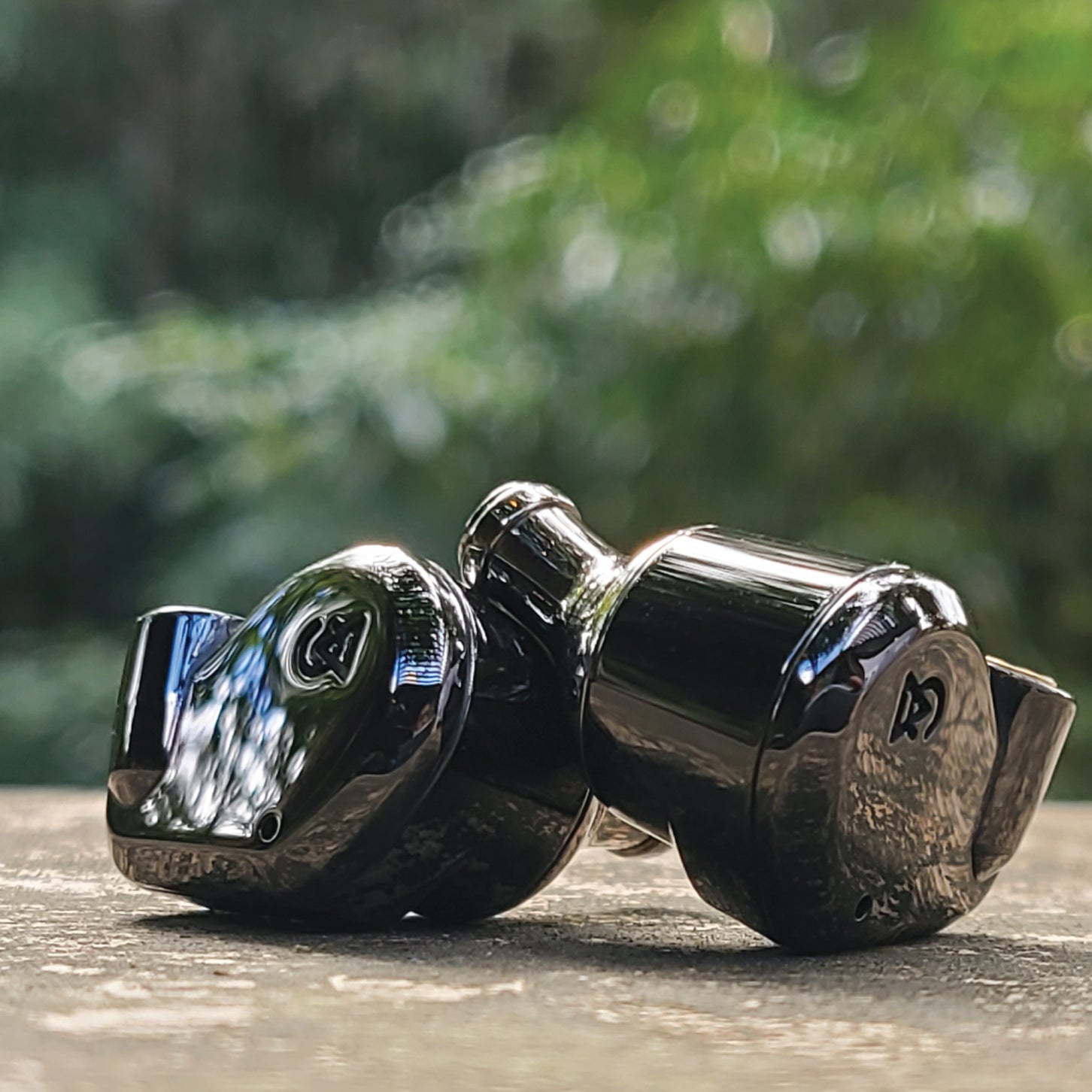

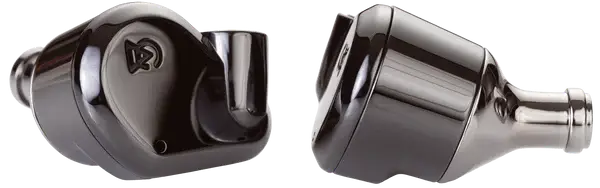

Both use a 10mm ADLC dynamic driver and a single balanced armature. The Dorado 2020 is an updated heritage model with a warmer, more body-forward character. The Iris is the current entry-level hybrid with a brighter, more energetic tuning. Both are two-driver hybrids; the distinction is in tuning and housing.
Clara uses a 10mm dual-magnet biocellulose dynamic driver for bass and lower midrange, paired with three balanced armatures (1x mid, 2x high) for midrange precision and treble extension. It was developed in collaboration with professional musician Alessandro Cortini and received Darko.Audio Best of 2024 recognition and Performance IEM of 2024 from the HeadFi Watercooler community.
A hybrid IEM combines two driver types, typically dynamic driver and balanced armature. A tribrid adds a third driver type, most often an electrostatic driver for extreme high-frequency extension. Quad-brid IEMs take it further with a fourth driver technology, as seen in Campfire Audio Chimera: bone conductor, True Glass dynamic driver, three balanced armatures, and four electrostatic super-tweeters.
A crossover is a network of passive components (capacitors, resistors, inductors) that divides the audio signal between drivers targeting specific frequency ranges. It smooths the overlapping frequency bands where drivers transition. In a hybrid IEM, the crossover ensures bass reaches the dynamic driver and midrange/treble reach the balanced armatures, with seamless transitions. Poorly designed crossovers can make different drivers sound segmented.
